1.5" Interlocking Steel Tube Connectors - .095 & .120

Features

• Compatible with .095" and .120" wall thickness tubing
• Precision-machined from 1018 steel for exceptional strength and durability
• Overall assembled height: 2-7/8"
• Smooth bore design (no machined threads)
• Self-aligning machined surfaces reduce stress on fasteners and allow for easier assembly after powder coating or painting
• Hardware can be installed from either direction, making installation easier in tight spaces
• Includes (2) 5/16-18 stainless steel socket head cap screws and matching lock nuts to resist corrosion
• Machined nut pockets securely hold the nuts in place, eliminating the need for a wrench during assembly
• Chamfered edges promote better weld penetration and provide a clean, professional finish after welding

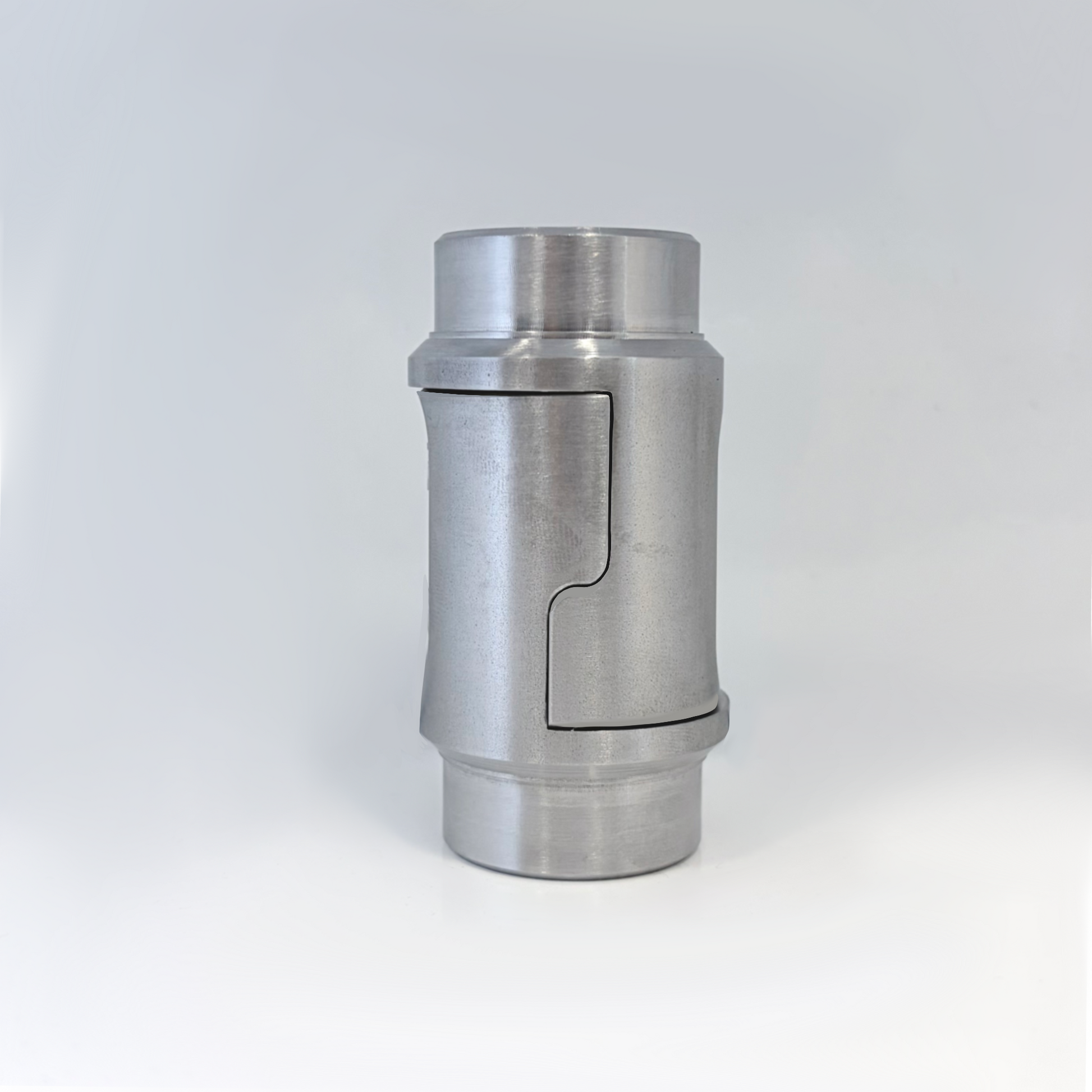

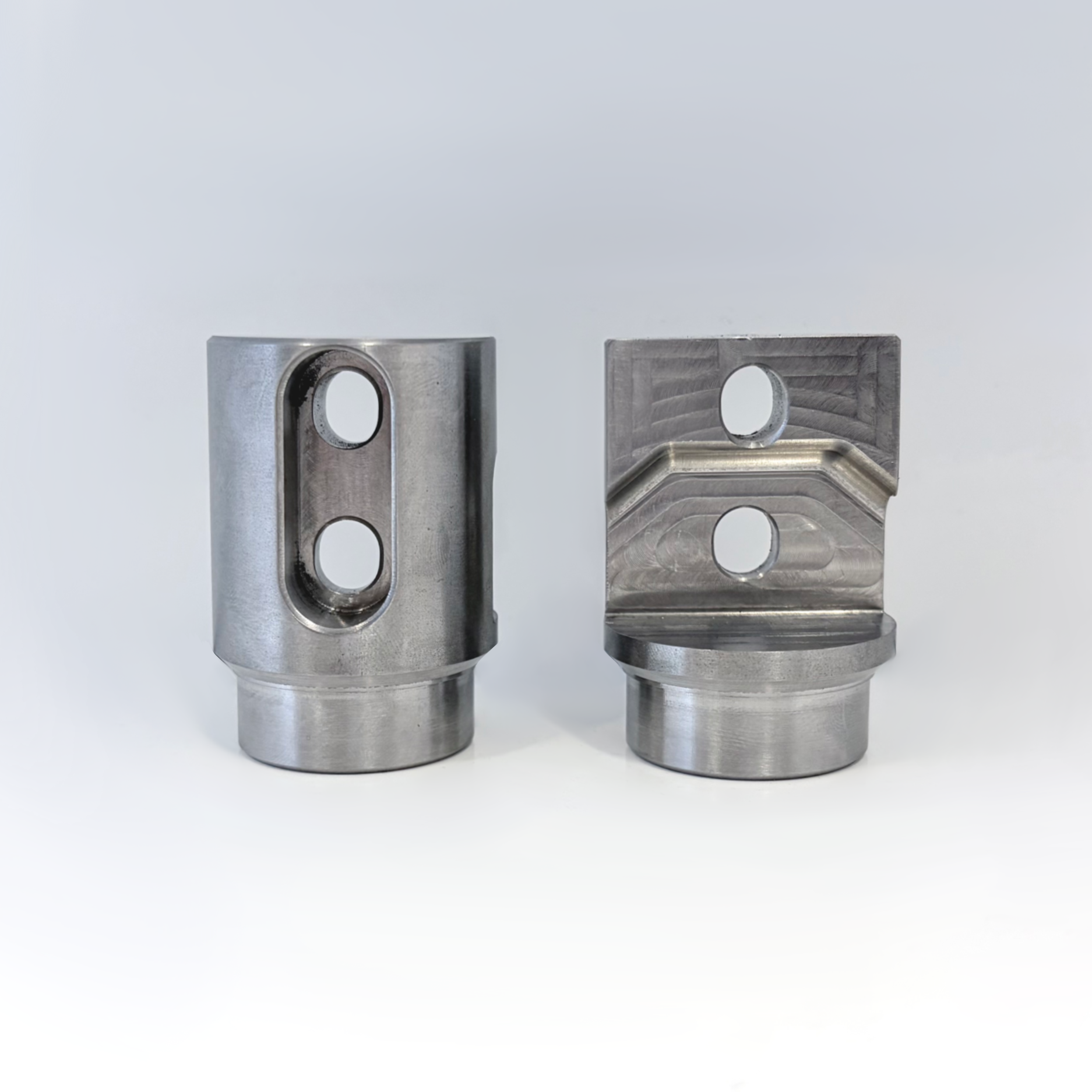

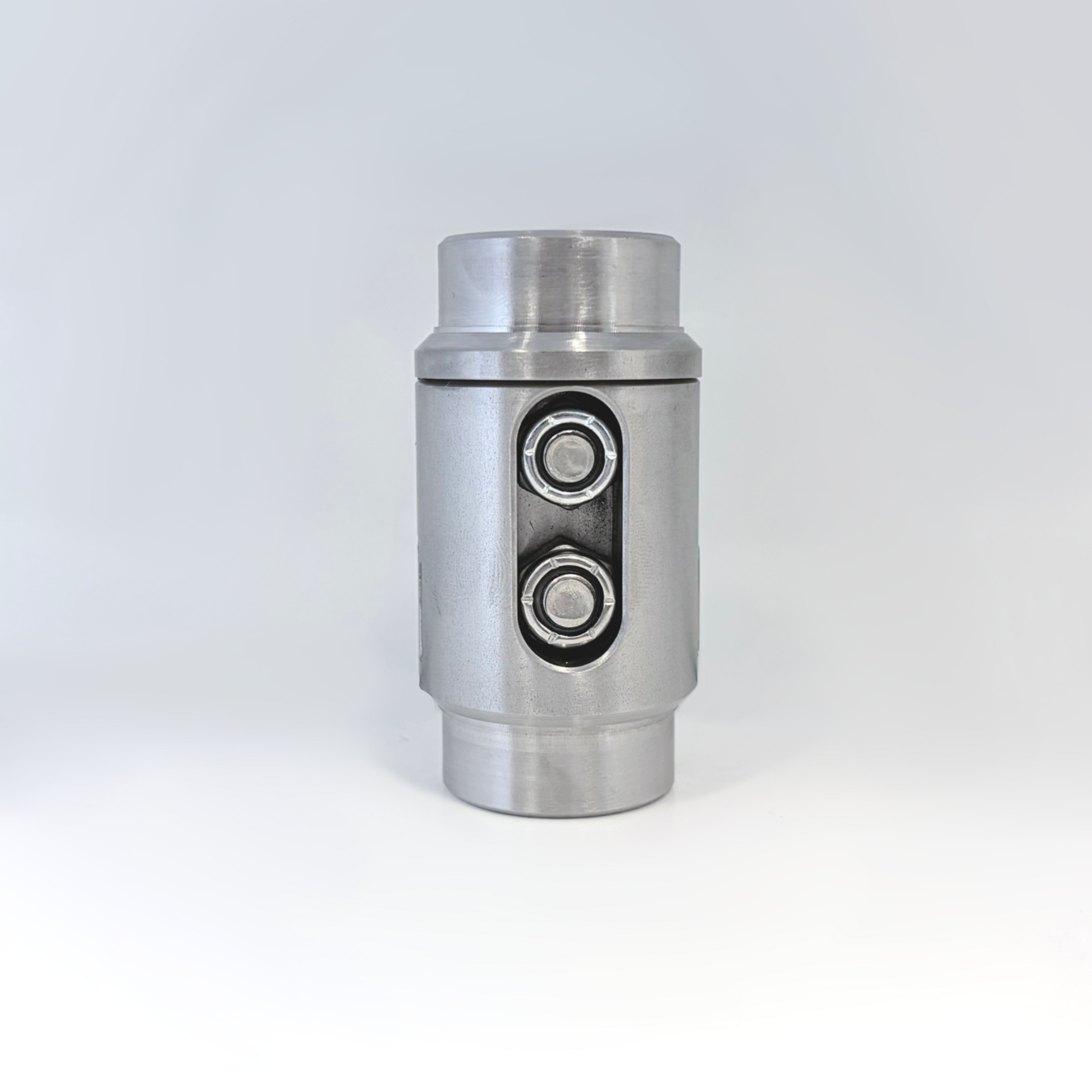

• Sold as one complete bung set, including (2) male/female bung halves, (2) stainless steel bolts, and (2) nuts (as pictured)
• Multiple bung sets are required for applications such as bumpers or removable door bars
• Not designed for use with factory mounting locations

Fitment

• Designed for 1.50" diameter tubing

Installation

For a secure installation, apply a medium-strength thread locker (such as Loctite Blue 242) to all bolts during assembly.
